Enduro LED Smart Battens
The Enduro LED Battens are a tough, weatherproof and smart solution to outdoor lighting. Combining a microwave and lux sensor, the battens activate when motion is detected or light levels fall to a specified level.
The Enduro Smart Battens are available in 2 sizes -690mm and 1253mm. Both models include an inbuilt LED driver (220-240V) and have a long rated life of 35,000 hours.
Weatherproof
The Enduro Battens have a high IP65 rating making them suitable for outdoor installations and in wet areas. The IK10 rating means the units are impact resistant, ideal for areas where secure lighting is a priority.
Speficiations
| 690mm | 1253mm | |
| Wattage | 28W | 53W |
| Colour Temperature | 4000K | 4000K |
| Lumen Output | 2500lm | 5000lm |
| Beam Angle | 110° | 110° |
| Dimensions | 690x141x73mm | 1253x141x73mm |
| Weight | 2.80kg | 4.9kg |
| Replacement For |
2x18W T8 Fluoro |
2x36W T8 Fluoro |

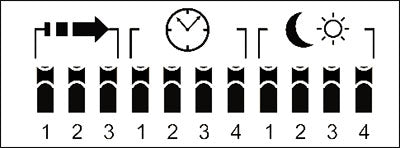

DIY Control Panel
The DIY dip switches allow the user to customise parameters, such as sensor detection range, lux level and light duration.

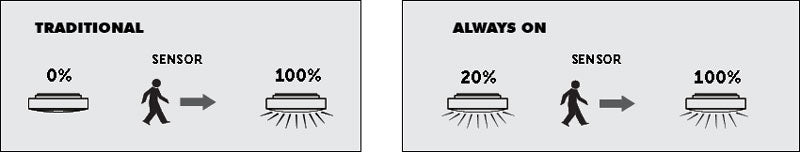

'Always on' Feature
A unique feature of the battens is the ability to rest at 20% light output. When motion is detected the unit will activate back to 100%. This allows for areas to always be illuminated, creating a safer and more secure environment while saving energy.
Also available to the user is the 'Traditional' operation of having the unit shut off completely when resting.

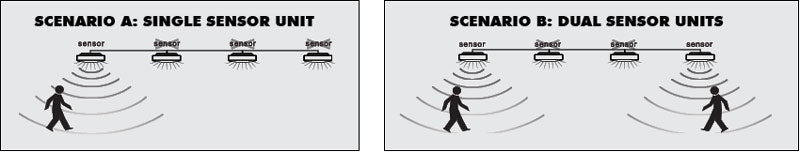

Linkable Units
The Battens can be linked together to create an array of lights that simulataneously activate when a 'master' unit is tripped. Connect up to 10 non-sensored units to 1 sensored master unit.
Smart Sensor Specifications
| Detection Range | 12 - 18 meters |
| Detection Angle | 30° to 150° |
| Light Duration | 5sec - 30min |
| Photocell Sensor | 2 - 50 lux or disabled |
| Detection Height | 10 meters max. |
